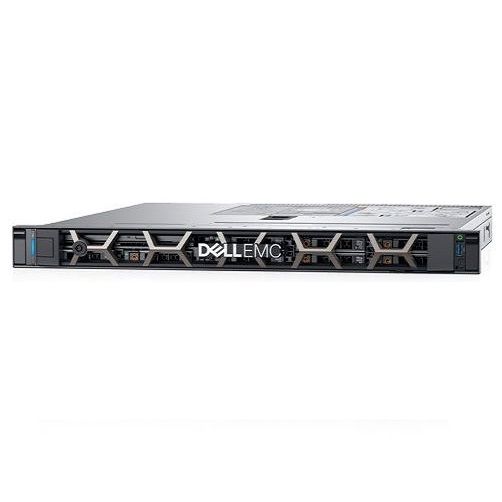

Form Factor:1U Rackmount up to 4x 3.5" Hot Plug Hard Drives
CPU:Intel Xeon E-2134 3.5GHz, 8M cache, 4C/8T, turbo (71W)
RAM: 1x 8GB 2666MT/s DDR4 ECC UDIMM
HDD: 1x 1TB 7.2K RPM SATA 6Gbps 512n 3.5in Hot-plug Hard Drive
ODD: DVD +/-RW, SATA, Internal for Hot Plug Chassis
RAID: Controller PERC H330 RAID Controller
NIC: 2 x 1GbE LOM
I/O Slots: 2xPCIe: One x8 slot low-profile, half-length with x4 slot width; One x16 slot low-profile/full-height, half-length with x8 bandwith
Remote Management: iDrac9, Basic
PSU: Single Hot Plug Power Supply 350W
Warranty:3yr Prosupport NBD
| Chassis Configuration | 3.5" Chassis with up to 4 Hot Plug Hard Drives |
| Processor | Intel® Xeon® E-2136 3.3GHz, 12M cache, 6C/12T, turbo (80W) |
| Memory Capacity | 8GB 2666MT/s DDR4 ECC UDIMM |
| RAID/Internal Storage Controllers | PERC H330 RAID Controller, Adapter |
| Hard Drives | 1TB 7.2K RPM SATA 6Gbps 512n 3.5in Hot-plug Hard Drive |
| Embedded Systems Management | iDRAC9 Basic |
| PCIe Riser | PCIe Riser with Fan with up to 1 FH/HL, x8 PCIe + 1 LP, x4 PCIe Gen3 Slots |
| Additional Network Cards | On-Board Broadcom 5720 Dual Port 1Gb LOM |
| Power Supply | Single, Hot-plug Power Supply, 350W |
| Dell Services:Hardware Support | 3Yr ProSupport:Next Business Day Onsite Service-Emerging DBS |
| Bezel | PowerEdge 1U Standard Bezel |
| Rack Rails | ReadyRails™ Sliding Rails With Cable Management Arm |
| Internal Optical Drive | DVD +/-RW, SATA, Internal for Hot Plug Chassis |
