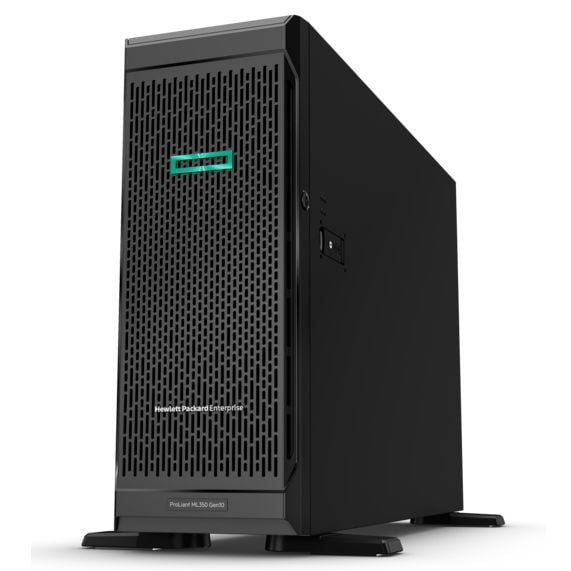

- HPE ML350 Gen10 SFF CTO Server
- Asia Pacific (UK Cord)/English local.
- HPE ML350 Gen10 4110 Xeon-S FIO
- HPE 16GB 1Rx4 PC4-2666V-R Smart Kit
- Factory integrated
- HPE Smart Array P408i-a SR Gen10 Ctrlr
- Factory integrated
- HPE ML350 Gen10 SFF AROC Cable Kit
- Factory integrated
- HPE 800W FS Plat Ht Plg LH Pwr Sply Kit
- Factory integrated
- HPE 96W Smart Storage Battery 260mm Cbl
- Factory integrated
| Form Factor | Tower, 8SFF |
| Model | HPE ML350 Gen10 8SFF CTO (877626-B21) |
| Processors | 1/2 Intel Xeon Silver 4110 (2.1GHz/8-core/11MB/85W) Processor |
| Memory | 1/24 HP 16GB (1x16GB) DDR4-2666V-R |
| Network Controller (LOM) | Embedded 4x1GbE HPE Ethernet 1Gb 4-port 369i Adapter |
| RAID Controller | P408i-a/2GB (Support Raid 0/1/10/5/50/6/60) |
| Optical Drive | None |
| Drive bays | 8 x SFF 2.5″ Hot Plug |
| Hard Drive | Non HDD |
| Management | HPE iLO with Intelligent Provisioning (standard) Optional: iLO Advance and OneView |
| PCIe | Three standard in primary riser (with dual M.2 support) |
| Power Supply (Installed/Max) | 1/2 800W RPS |
| Standard Waranty | 3 years |
